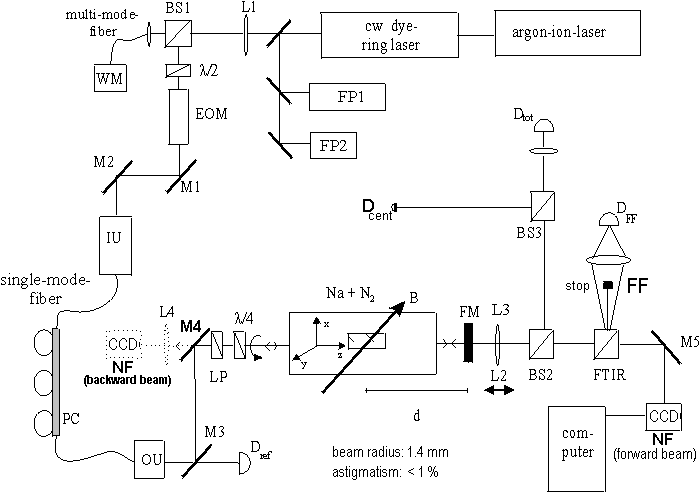

Detailed experimental setup
L lens, BS beam splitter, FP Fabry-Perot interferometer, IU, OU fiber coupling units,
M mirror, EOM electro-optical modulator, lambda/4 , lambda/2 retardation plates,
D detector (photodiode),CCD charge-coupled device camera,
FTIR variable beam splitter based on frustrated total internal reflection,
FM feedback mirror (R=0.915), B system of three orthogonal pairs of Helmholtz coils.
