Using pLANet.X under Windows

Requirements:

• Windows 7 or higher
• You do have administrative rights.
• You have installed the latest root certificate (CER).

• A. Preparatory Configuration of Your PC

  1. Activating the Automatic Configuration

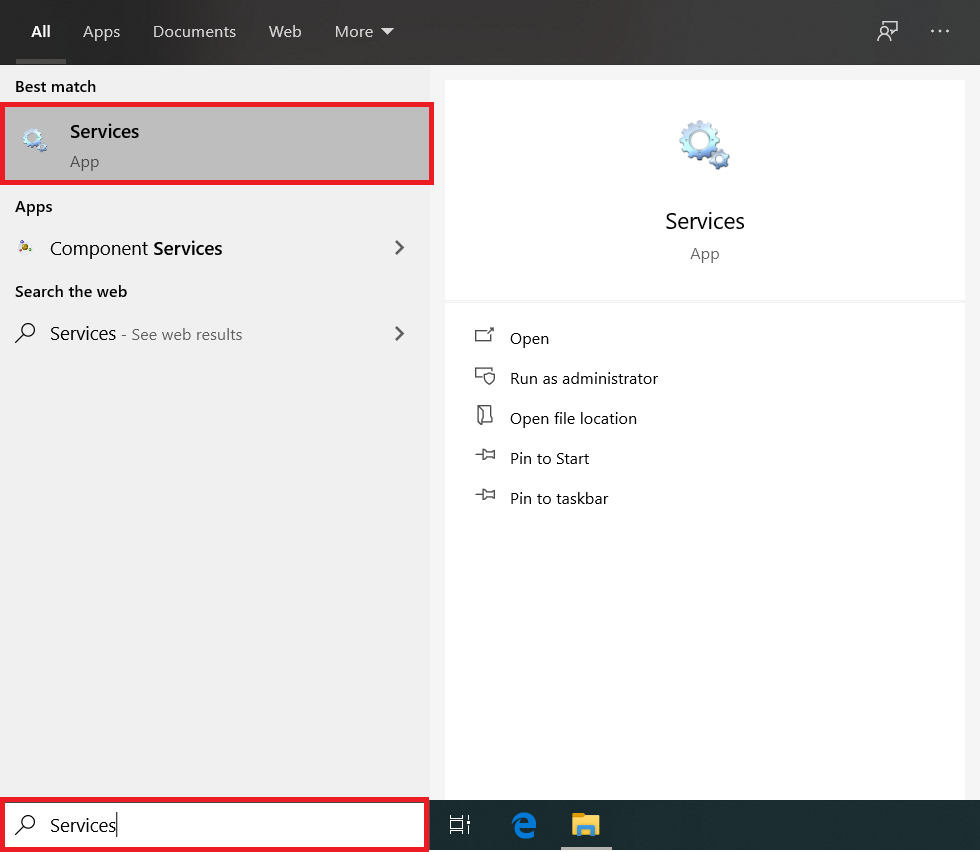

  Before using pLANet.X for the first time, your PC must be configured. Open the Search and search for "Services". The Service function will be displayed under "Programs", click on it.

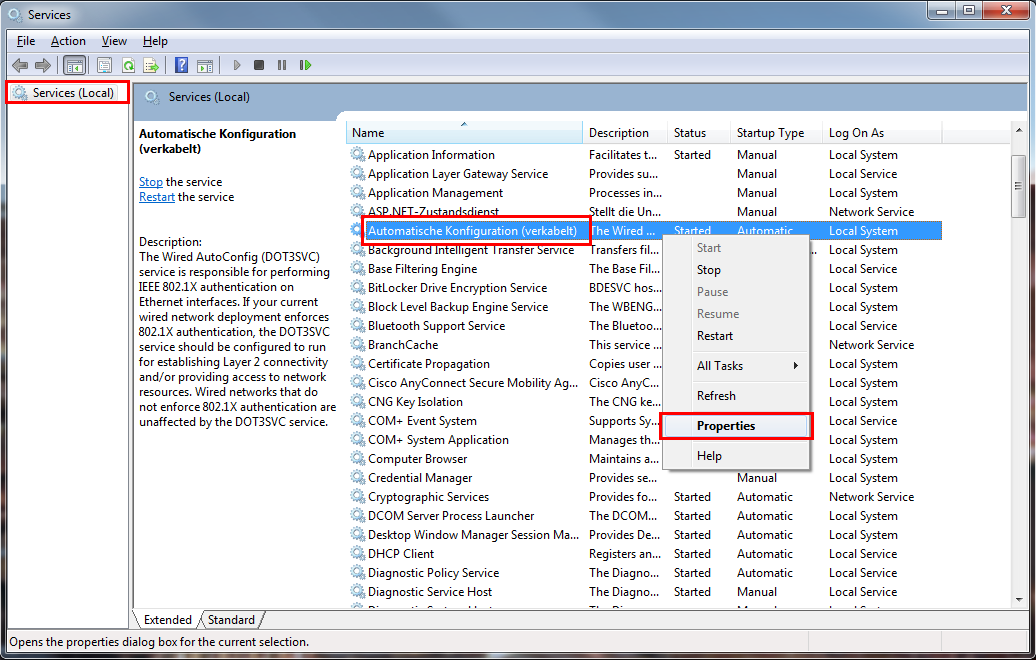

  Search for the entry "Automatische Konfiguration (verkabelt)" (automatic configuration, wired) and open the context menu with a right click. Choose "Properties".

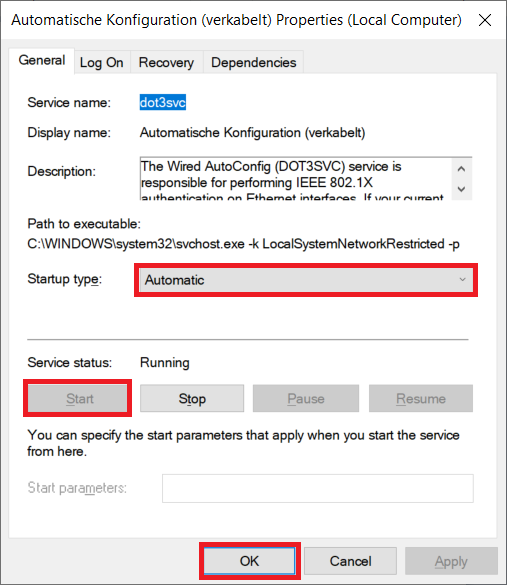

  A new window opens. Please select "Automatic" as the startup type and click on "Start" afterwards. You may close the window with "OK" now.



  2. Adapter Settings Menu

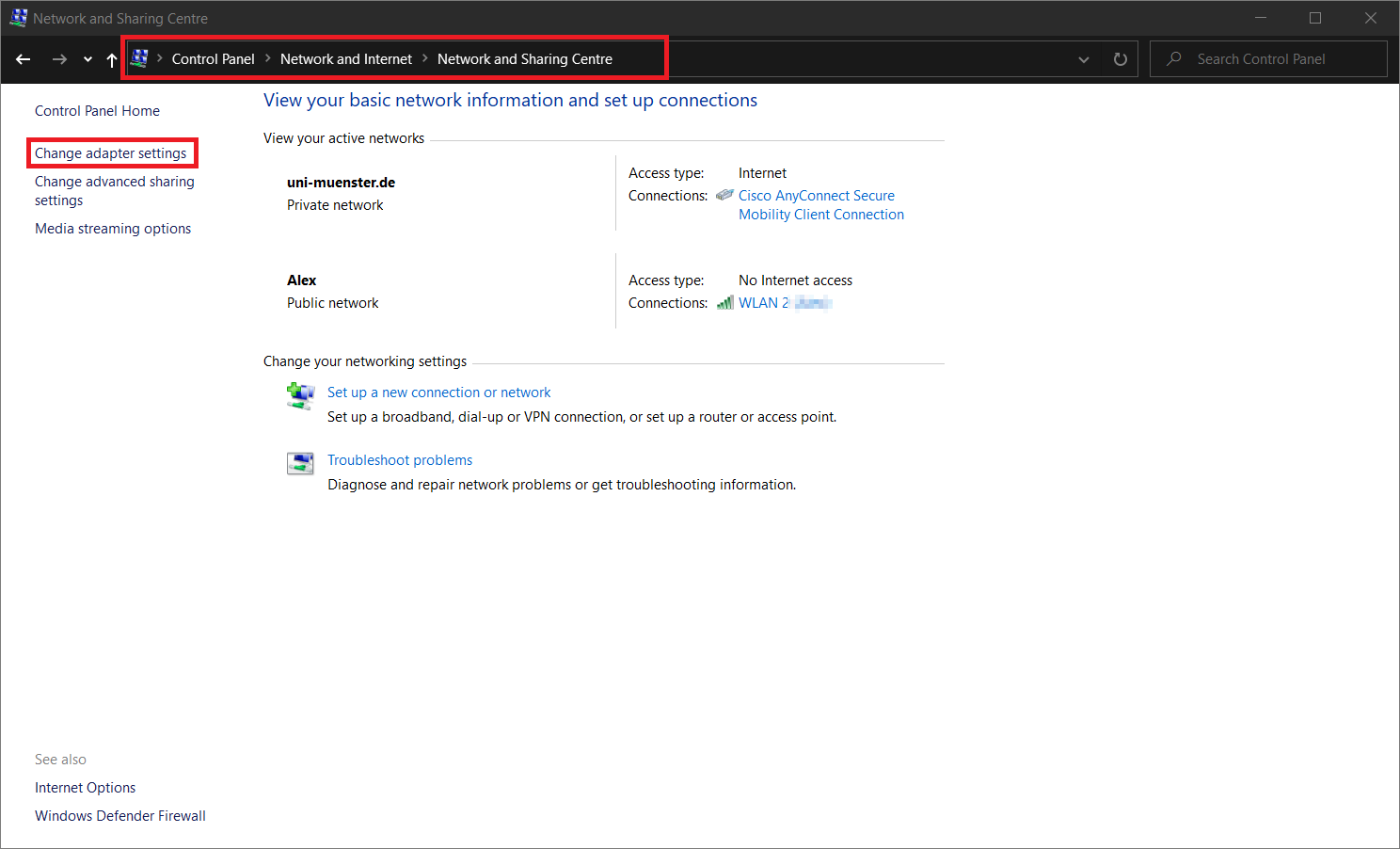

  Open the network and sharing center. The fastest way to access is by right clicking on the network icon at the right hand side of your task bar. Then click on "Change adapter settings" afterwards.



  3. Properties of the LAN Connection

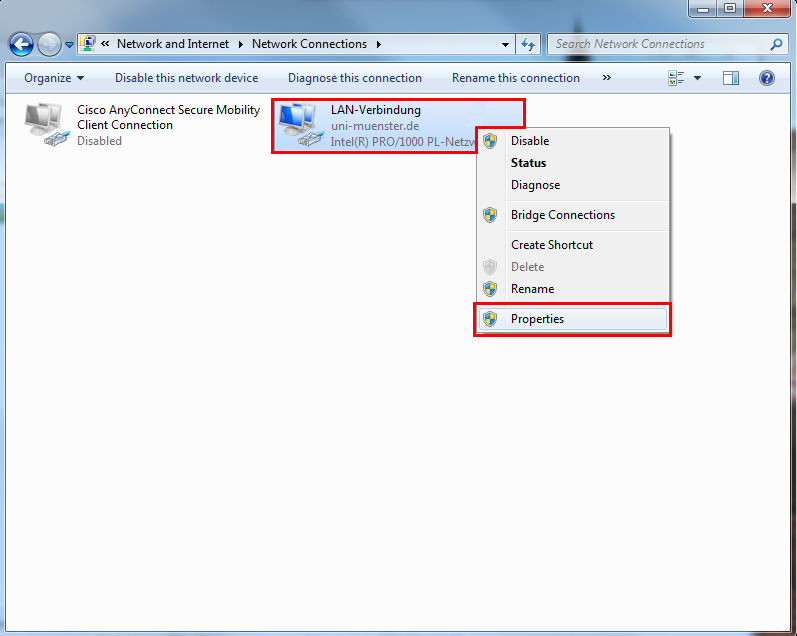

  Please choose "Properties" within the context menu of your LAN adapter. You open the context menu with a right click on the icon.



  4. Authentication Settings

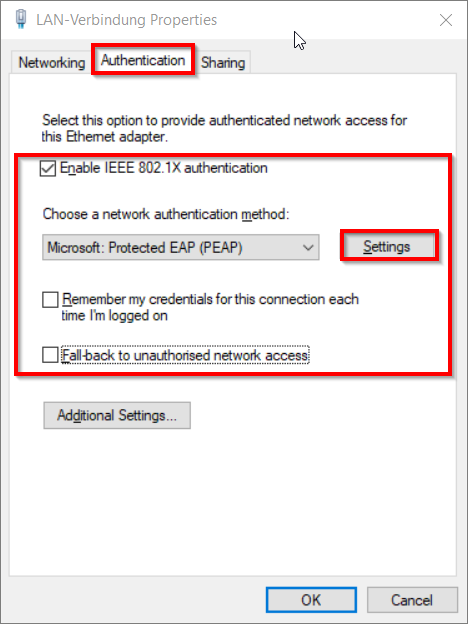

  Please enter the following settings:

  • Enable IEEE 802.1X authentication: Tick
  • Network authentication method: Microsoft: Protected EAP (PEAP)
  • Remember my credentials for this connection each time I'm logged in: Untick
  • Fallback to unauthorized network access: Untick

  Optional settings:

  • Remember my credentials for this connection each time I'm logged in: Enable, if you want to use the pLANet.X network without logging in every time again.
  • Fallback to unauthorized network access: Enable, if you want to be able to use LAN-connections outside of the pLANet.X network.

  Afterwards, click "Settings" to the network authentification method.

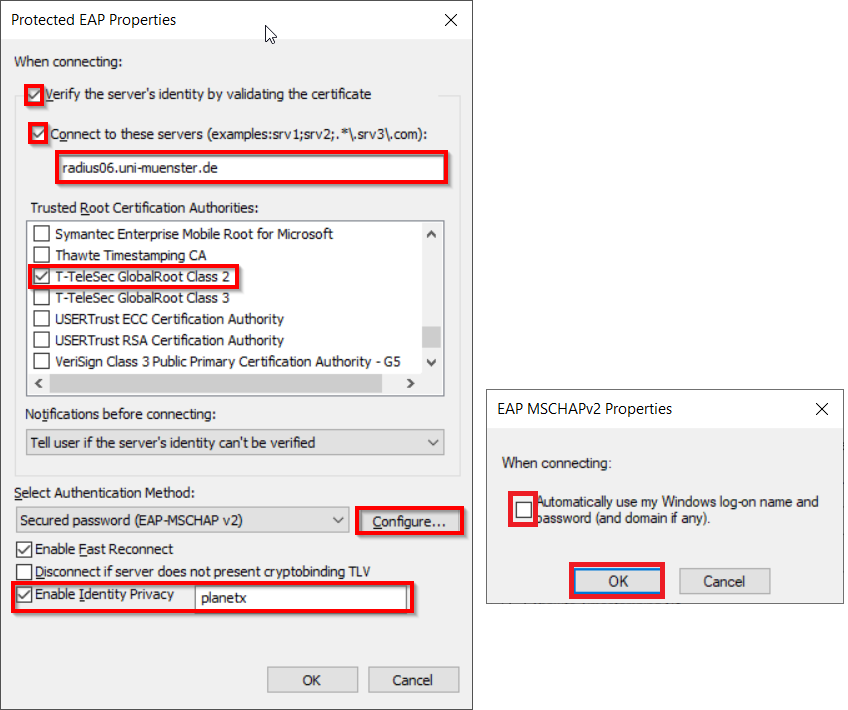

  Please enter the following settings:

  • Validate server certificate: Yes
  • Connect to these servers: radius06.uni-muenster.de
  • Trusted Root Certification Authorities: T-TeleSec GlobalRoot Class 2 (if applicable install it before, see Specific Requirements)
  • Select Authentication Method: Secured password (EAP-MSCHAP v2)
  • Enable Identity Privacy: planetx

  Click "Configure". Deactivate the option "Automatically use my Windows logon name and password (and domain if any)". Afterwards, click "OK" to close the window. Close the window "Protected EAP Properties" by clicking "OK".

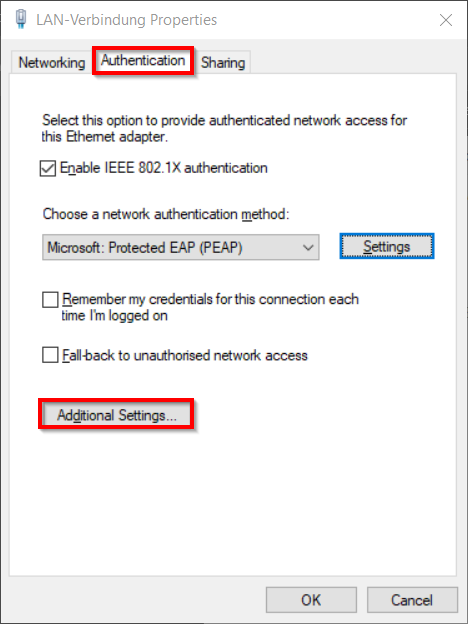

  Open the "Additional Settings" within the "Authentication" menu tab now.

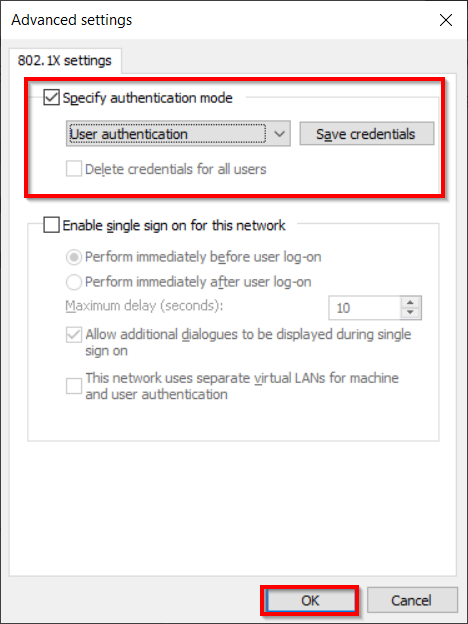

  Please enter the following settings:

  • Specify authentication mode: Yes
  • Authentication method: User authentication

  You can save your user credentials, if you wish to do so. Click "Save credentials". A new window opens. Enter your university e-mail address YourUniversity-ID@uni-muenster.de and your password for network access. Your login information will be saved by clicking "OK". Please close all windows with "OK" now.



• B. Using the pLANet.X Connection

  Restart your PC without a network connection. Afterwards, connect your PC with pLANet.X. You may be asked to enter your user credentials again. Please enter your university e-mail address YourUniversity-ID@uni-muenster.de and your password for network access.
